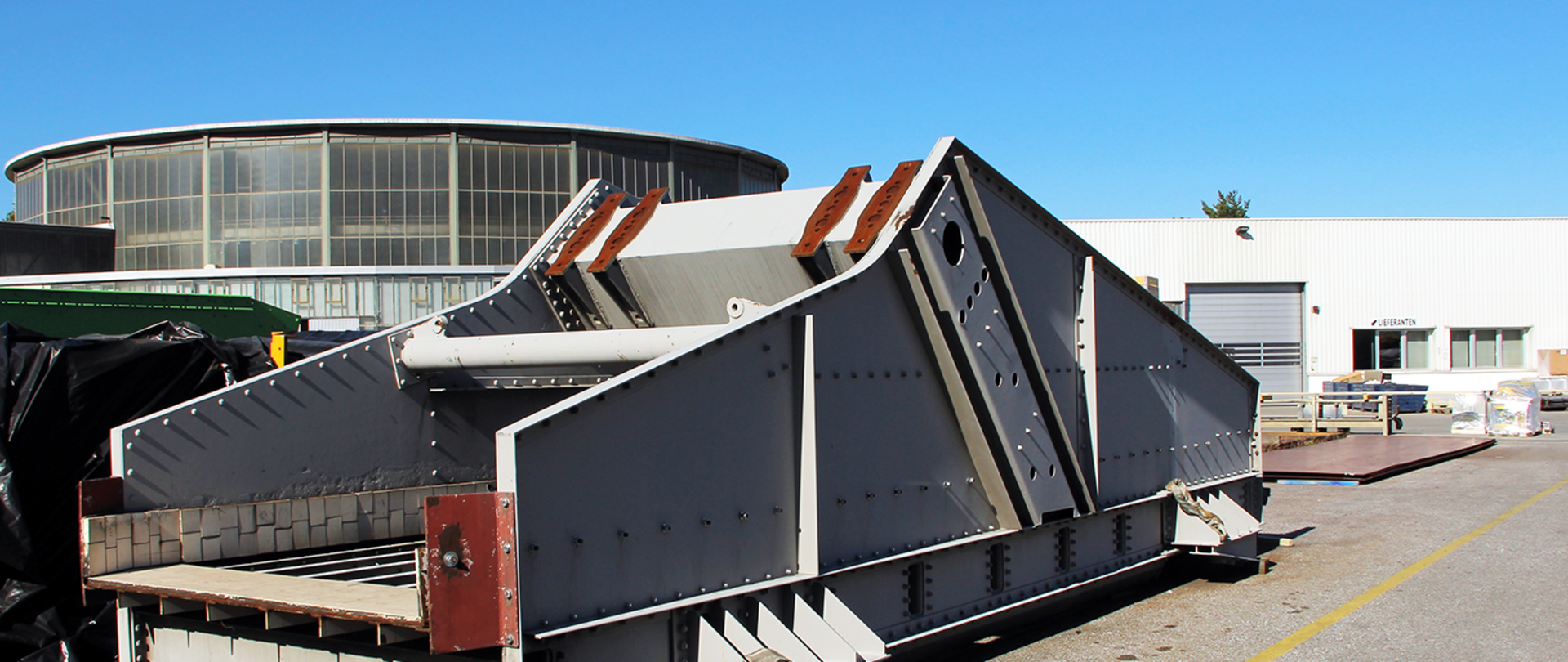

The Binder+Co linear vibrating screen.

Linear vibrating screens from Binder+Co are a type of vibrating screen. They work according to the ejection principle and move in a linear way. The special feature of this type of screen, apart from its adjustable unbalanced masses, is the flexibility of its angles of inclination. Long vibrating screens allow for several different cut points on one screen deck.

Just the right one!

The flexible linear vibrating screen, thanks to its adjustable unbalanced masses, can be easily and quickly adapted to a great variety of tasks. And because this classic screen from Binder+Co works horizontally or with a very low inclination of the screen deck, it’s absolutely the right choice for exact classification up to grades of 200 mm.

Tasks & Applications

  • For fine and coarse screening up to 200 mm
  • Dry screening
  • Wet screening

Technical specifications

Number of screen decks 1 - 3
Effective screen width (m)0,8 - 3,4
Effective screen length (m)2,0 - 12,0
Screen area (m²)/deck1,6 - 40,8
Cut points (mm)2,0 - 200,0

As close to the customer as possible

With our wide-ranging product portfolio, we offer our customers optimum processing of their product – not only with stand-alone systems but also complete concepts and turn-key plants. Only the optimum plant concept leads to securing an economic and technological advantage for our customers.
For the best possible fulfillment of specific customer requirements, we can use our comprehensive testing facility.
